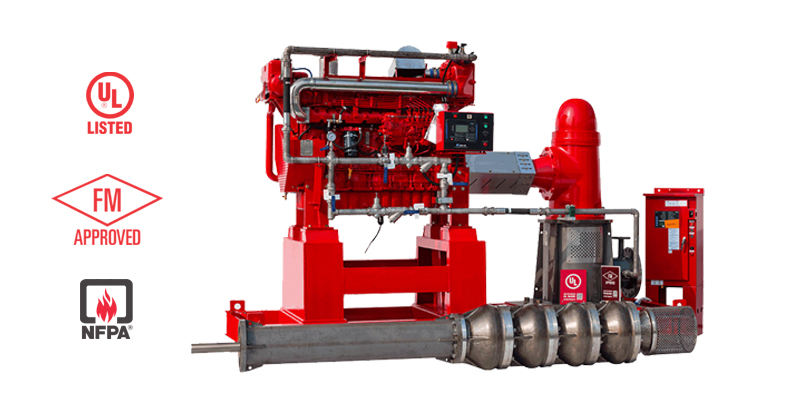

Vertical Turbine Fire Fighting Pumps
Technical data
- Flow, Q:max. 3000 m3/h
- Head, H:max. 250 m
- Liquid temp.: +40°C
Applications
The pumps are suitable for liquid transfer in
- Fire fighting systems
- Water supply
- Irrigation for deep wel l
- Mine dewatering
- Sprinkl ing and irrigation
- Industrial wet-pit sumps
- River/sea water circulation
Features and benefits
- Standard dimensions according to EN or ISO standards
- Robust design
- Wide range
- Standard motor
- Adaptable to any application and performance
Standard material
- Bowl : Cast iron / or Stainless steel
- Shaft : Stainless steel
- Impeller : Cast iron / Bronze / or Stainless steel
- Discharge head : Castiron / or Carbon steel
Description
- Vertical single stage or multistage pump with mixed or axial flow impeller design, broad hydraulic coverage provides best selection to
meet specific operating conditions.
- Fabricated or cast iron、 surface or underground discharge head, shaft and bearing combinations promote long life with options of open or enclose line shaft construction. It can be driven by VHS NEMA Standard motor VSS motor or diesel engine through right angle Gear box.
Optional
- Various types of shaft seal depending on liquid, temperature and pressure
- Cast iron, bronze or stainless steel impeller
- Cast iron or stainless steel pump housing.
