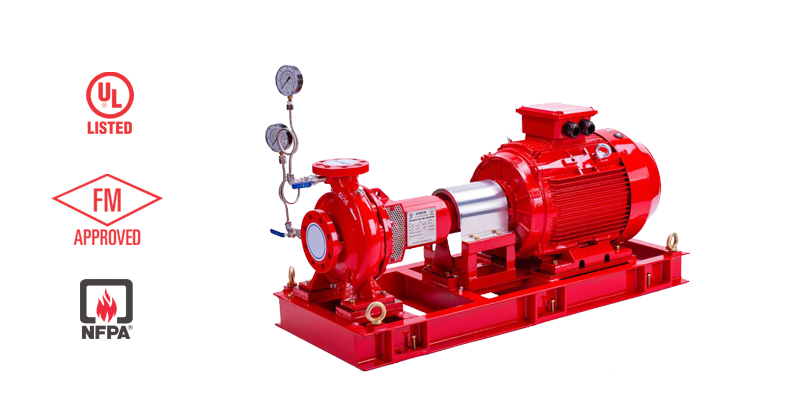

End Suction Fire Fighting Pumps
Technical data
- Flow, Q:max. 1170 m3/h
- Head, H:max. 160 m
- Liquid temp.: -25°C to +140°C
Applications
The pumps are suitable for liquid transfer in
- Fire fighting systems
- District heating plants
- Water supply systems
- Air-conditioning systems
- Cooling system
- Washdown system
- Fire fighting systems
- Other industrial systems.
Features and benefits
- Standard dimensions according to EN or ISO standards
- Robust design
- Wide range
- Standard motor
- Adaptable to any application and performance
- En 12 756 shaft seal.
Standard material
- Casing : Cast iron / Ductile cast iron
: Stainless steel
- Shaft : Stainless steel
- Impeller : Castiron / Brass / Bronze or Stainless steel
Description
- Pump design according to DIN 24255. The casing is heavy duty design for 16bar operating pressure, suction with inlet vane to reduce the NPSH.
- Back pull out design for fast and easy maintenance. Replaceable wear ring to assure optimum efficiency. Removable and adjustable support foot provides added rigidity and easy of maintenance. Stainless steel shaft sleeve prevents damage to the shaft reduces the maintenance cost. Mechanical seal or soft packing on request.
Optional
- Various types of shaft seal depending on liquid, temperature and pressure
- Cast iron, bronze or stainless steel impeller
- Cast iron or stainless steel pump housing.
